Dashboard

The dashboard package provides a browser-based UI for monitoring your cache, dedup, and rate limit stores in real time. It supports multiple named clients, works with all store backends (Memory, SQLite, DynamoDB), and auto-detects capabilities.

Installation

npm

npm install @http-client-toolkit/dashboard

pnpm

pnpm add @http-client-toolkit/dashboard

yarn

yarn add @http-client-toolkit/dashboard

Embedded Middleware

Mount the dashboard inside an existing HTTP server using createDashboard(). Pass in one or more HttpClient instances — the dashboard reads their stores automatically:

import http from 'http';
import { HttpClient } from '@http-client-toolkit/core';
import { createDashboard } from '@http-client-toolkit/dashboard';
import {
  InMemoryCacheStore,
  InMemoryDedupeStore,
  InMemoryRateLimitStore,
} from '@http-client-toolkit/store-memory';

const userApiClient = new HttpClient({
  name: 'user-api',
  cache: { store: new InMemoryCacheStore() },
  dedupe: new InMemoryDedupeStore(),
  rateLimit: { store: new InMemoryRateLimitStore() },
});

const productApiClient = new HttpClient({
  name: 'product-api',
  cache: { store: new InMemoryCacheStore() },
  rateLimit: { store: new InMemoryRateLimitStore() },
});

const dashboard = createDashboard({
  clients: [
    { client: userApiClient },
    { client: productApiClient },
  ],
});

const server = http.createServer(dashboard);
server.listen(4000, () => {
  console.log('Dashboard at http://localhost:4000');
});

The middleware signature is (req, res, next?) => void, so it works with plain http.createServer, Express, Connect, and similar frameworks.

Web Standards Handler

Use createDashboardHandler() for frameworks and runtimes that use the Web Standards Request/Response API — such as Hono, Bun, and Deno:

import { HttpClient } from '@http-client-toolkit/core';
import { createDashboardHandler } from '@http-client-toolkit/dashboard';
import { InMemoryCacheStore, InMemoryDedupeStore, InMemoryRateLimitStore } from '@http-client-toolkit/store-memory';

const userApiClient = new HttpClient({
  name: 'user-api',
  cache: { store: new InMemoryCacheStore() },
  dedupe: new InMemoryDedupeStore(),
  rateLimit: { store: new InMemoryRateLimitStore() },
});

const handler = createDashboardHandler({
  clients: [{ client: userApiClient }],
});

The handler signature is (request: Request) => Promise<Response>, so it plugs directly into any Web Standards-compatible server:

Hono

import { Hono } from 'hono';

const app = new Hono();
app.all('/dashboard/*', (c) => handler(c.req.raw));

Bun

Bun.serve({ fetch: handler });

Deno

Deno.serve(handler);

Tip

When mounting at a sub-path, set the basePath option so the handler can strip it during routing:

const handler = createDashboardHandler({
  clients: [{ client: myApiClient }],
  basePath: '/dashboard',
});

Standalone Server

For convenience, startDashboard() spins up its own HTTP server:

import { HttpClient } from '@http-client-toolkit/core';
import { startDashboard } from '@http-client-toolkit/dashboard';
import { InMemoryCacheStore, InMemoryDedupeStore, InMemoryRateLimitStore } from '@http-client-toolkit/store-memory';

const userApiClient = new HttpClient({
  name: 'user-api',
  cache: { store: new InMemoryCacheStore() },
  dedupe: new InMemoryDedupeStore(),
  rateLimit: { store: new InMemoryRateLimitStore() },
});

const { server, close } = await startDashboard({
  clients: [{ client: userApiClient }],
  port: 4000,
  host: 'localhost',
});

// Later...
close();

Multi-Client Support

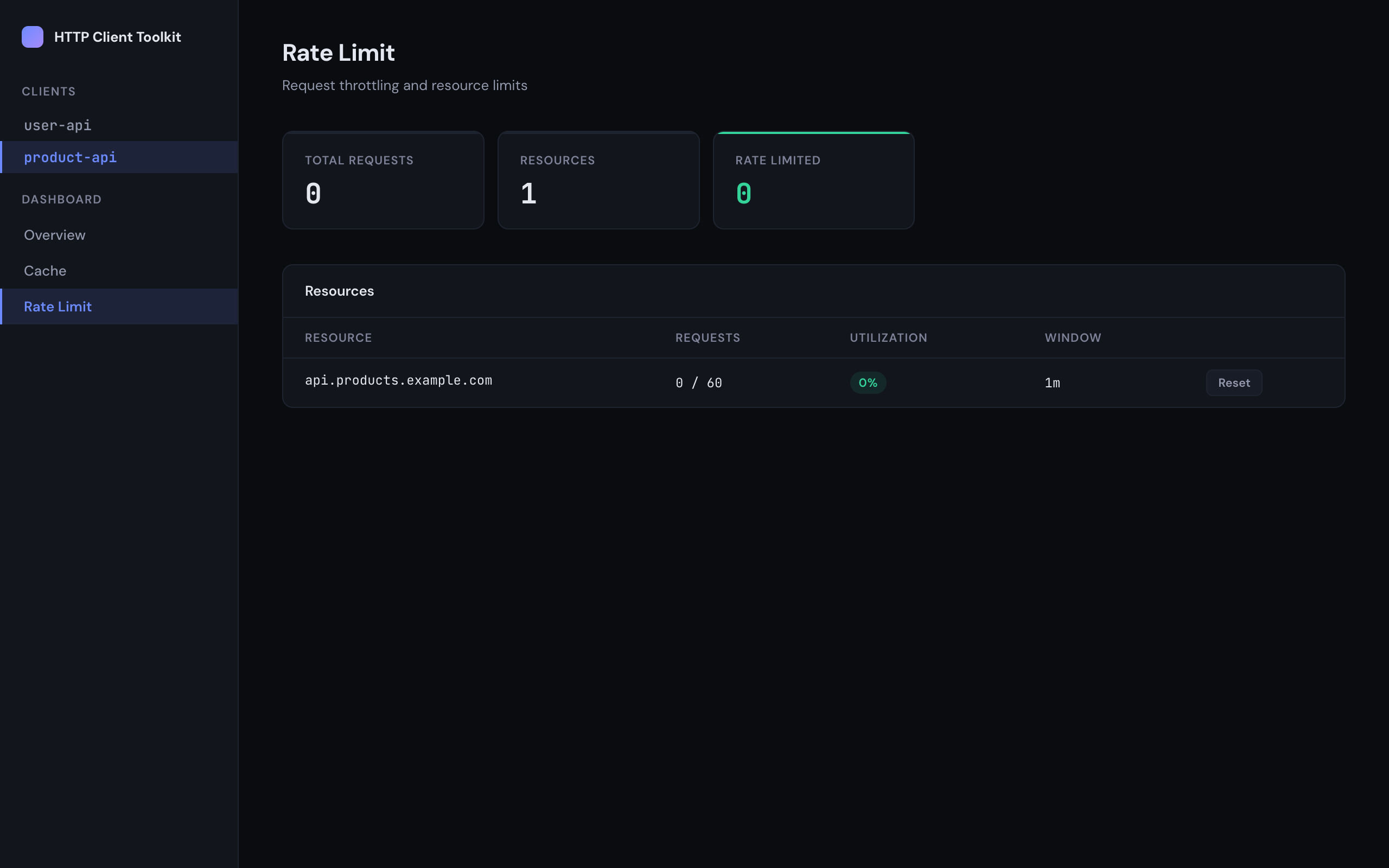

When multiple clients are configured, the sidebar displays a client selector. Each client has its own independent stores, and the navigation adapts to show only the views available for the selected client.

Client names must be URL-safe (letters, numbers, hyphens, underscores) and unique within a dashboard instance.

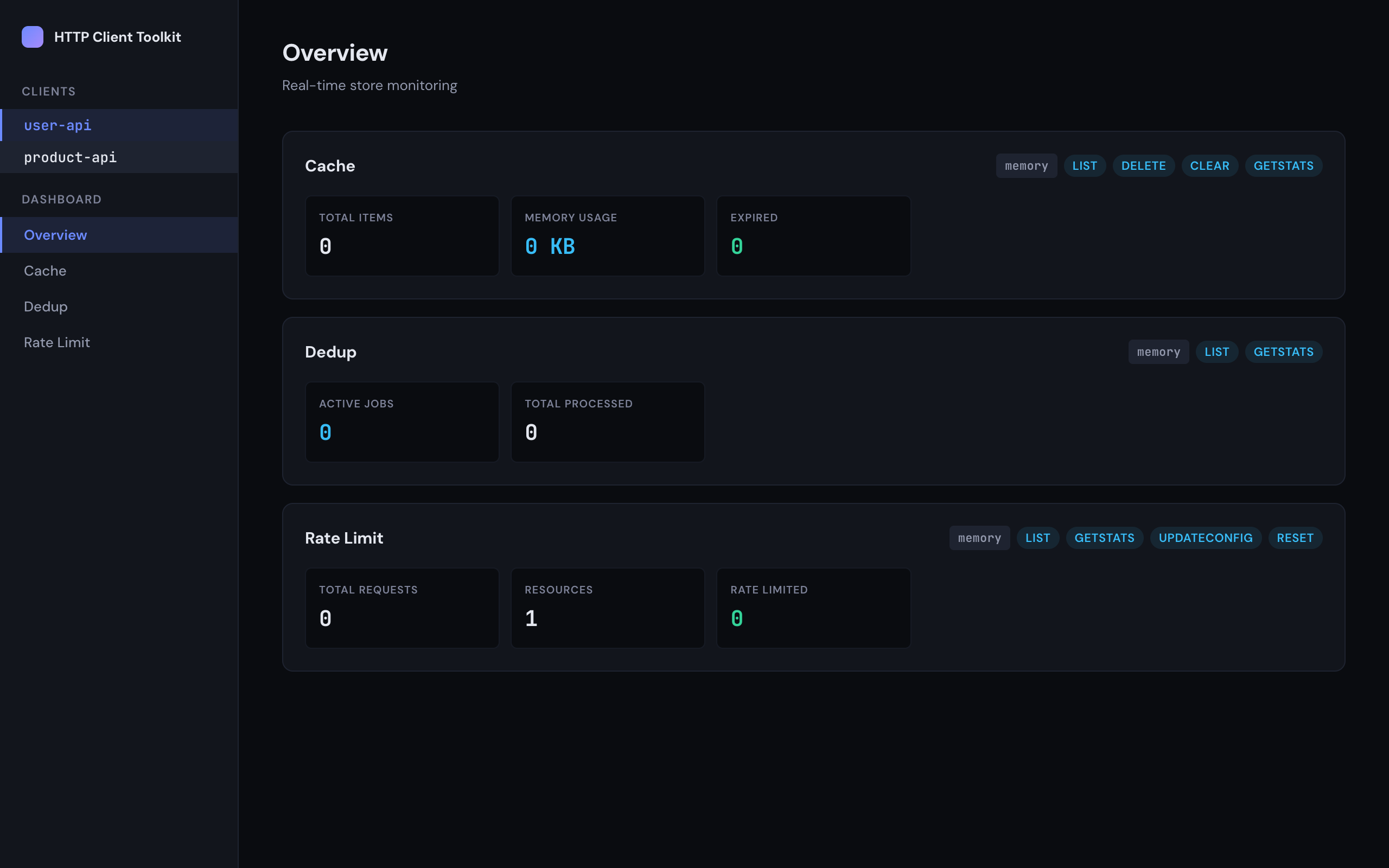

Views

Cache

View cached responses with stats for total items, memory usage, and expired entries. Supports paginated entry listing, individual deletion, and bulk clearing.

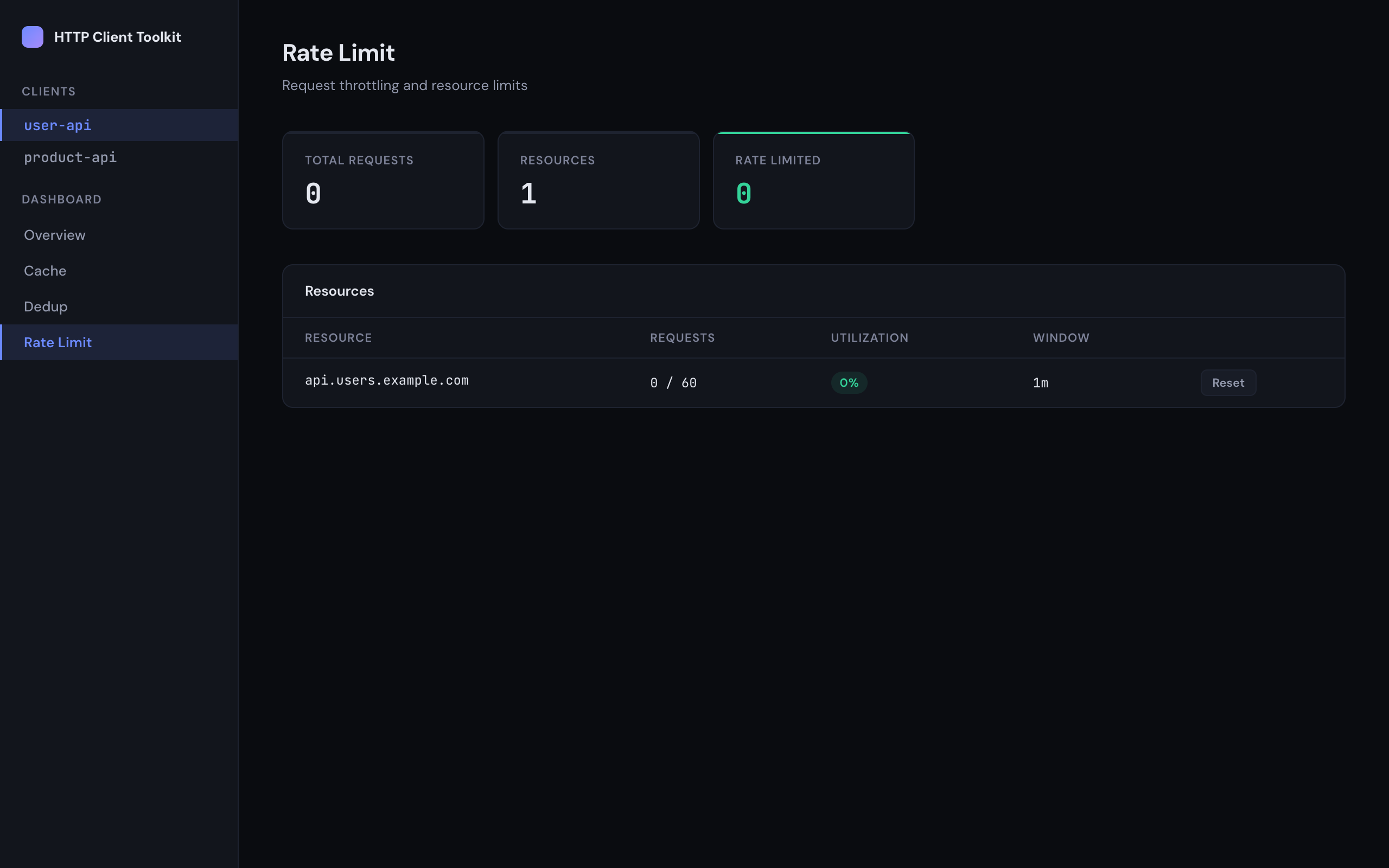

Rate Limit

Monitor request throttling with per-resource utilization, request counts, and window durations. Reset individual resource counters when supported by the backend.

Dedup

Track active deduplication jobs and total processed count. View individual job details when using a backend that supports listing.

Configuration

ClientConfig

Each client in the clients array accepts:

Option	Type	Required	Description
client	HttpClient	Yes	An HttpClient instance with at least one store configured
name	string	No	Override the client’s name for the dashboard (defaults to client.name)

The dashboard reads stores directly from the HttpClient instance via its stores property. At least one store (cache, dedupe, or rateLimit) must be configured on the client.

DashboardOptions

Option	Type	Default	Description
clients	ClientConfig[]	—	One or more named clients (required)
basePath	string	'/'	URL prefix for the dashboard
pollIntervalMs	number	5000	How often the UI polls for updates (ms)

StandaloneDashboardOptions

Extends DashboardOptions with:

Option	Type	Default	Description
port	number	4000	Port number for the standalone server
host	string	'localhost'	Host to bind to

Supported Backends

The dashboard uses runtime detection to identify which store implementation you’ve passed in and wraps it with a backend-specific adapter. No changes to your store code are required.

Backend	Cache	Dedup	Rate Limit
Memory	Stats, list entries, view/delete/clear	Stats, list jobs, view job	Stats, list resources, view/reset/configure
SQLite	Stats, list entries, view/delete/clear	Stats, list jobs, view job	Stats, list resources, view/reset/configure
DynamoDB	Stats only	Stats only	Stats only
Unknown	Stats only	Stats only	Stats only

Note

DynamoDB and unknown store types fall back to a generic adapter with limited capabilities. The UI gracefully hides features that aren’t available.

API Endpoints

The dashboard exposes a REST API that the React SPA consumes. All store endpoints are scoped per client under /api/clients/:name/.

Method	Endpoint	Description
GET	/api/health	Aggregate health with all clients and capabilities
GET	/api/clients	List all clients and their store types
GET	/api/clients/:name/cache/stats	Cache statistics
GET	/api/clients/:name/cache/entries?page=0&limit=50	List cache entries
GET	/api/clients/:name/cache/entries/:hash	Get a single cache entry
DELETE	/api/clients/:name/cache/entries/:hash	Delete a cache entry
DELETE	/api/clients/:name/cache/entries	Clear all cache entries
GET	/api/clients/:name/dedup/stats	Dedup statistics
GET	/api/clients/:name/dedup/jobs?page=0&limit=50	List dedup jobs
GET	/api/clients/:name/dedup/jobs/:hash	Get a single dedup job
GET	/api/clients/:name/rate-limit/stats	Rate limit statistics
GET	/api/clients/:name/rate-limit/resources	List rate-limited resources
GET	/api/clients/:name/rate-limit/resources/:name	Get resource status
PUT	/api/clients/:name/rate-limit/resources/:name/config	Update resource config
POST	/api/clients/:name/rate-limit/resources/:name/reset	Reset a resource counter

Future Improvements

• Retry metrics — Show requests that required retries and their success rate. The core HttpClient retry loop currently doesn’t persist metrics, so this would require adding internal retry tracking (total attempts, successes after retry, final failures) and exposing it via a new dashboard adapter.
